High Performance OLED driver for eMagin SVGA OLEDs

Availability: For Sale

USD $600.00
  • Buy 10 for USD $520.00 each and save 14%
  • Buy 25 for USD $485.00 each and save 20%
  • Buy 50 for USD $435.00 each and save 28%
  • Buy 100 for USD $400.00 each and save 34%

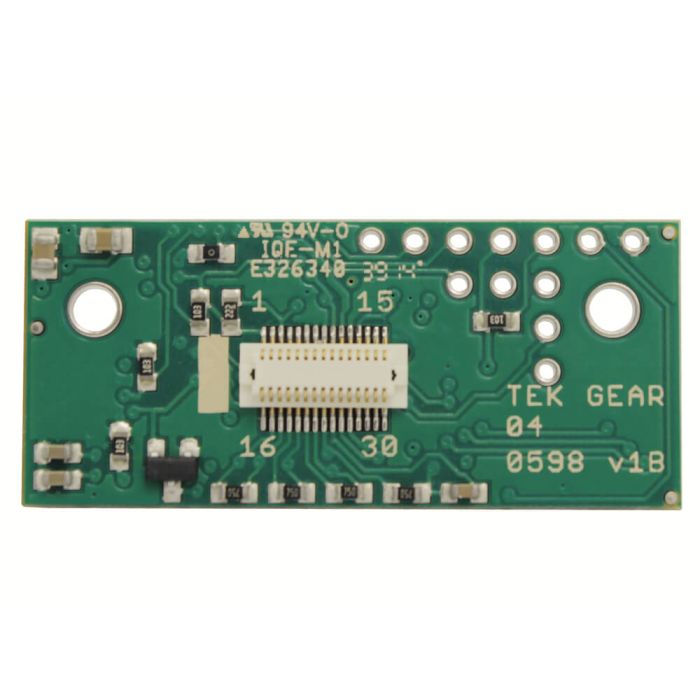

The O4 OLED driver board for the eMagin SVGA+ and SVGA-3D OLEDs is designed for applications where individual gain, offset and luminance controls are necessary.

Luminance control for the OLED is necessary for some applications that require:

  • a wider luminance range than is available from the standard OLED drive circuitry
  • temperature compensation to accommodate for picture quality variations that occur in the OLED over a wide range of temperatures


The O4 is the single board version of our popular O2 board set.  It possesses all of the features of the O2 :

  • receives video and power inputs
  • performs the DC/DC power conversion
  • video signal auto-detection
  • display initialization
  • user-control for power and highbrightness (luminance)
  • connects to the OLED
  • receives video and power from user supplied outputs
  • implements the high brightness settings
  • Simple Serial Interface to accommodate remote configuration

Contact us for quantity pricing or custom firmware and layout requirements.

Note: O4 is shown mounted to the WF05 Optic in images for reference only.  WF05 Optic is not included and must be puchased separately if required.

Additional Information

Manufacturer Tek Gear
Backorder Lead Time No
Display Manufacturer eMagin
Display eMagin SVGA+, SVGA-3D
Display Mount Board-to-Board
Form Factor WFO5 Optic Mount
Luminance Adjustable
Cable Interface Discrete Wires
Command Interface Yes
