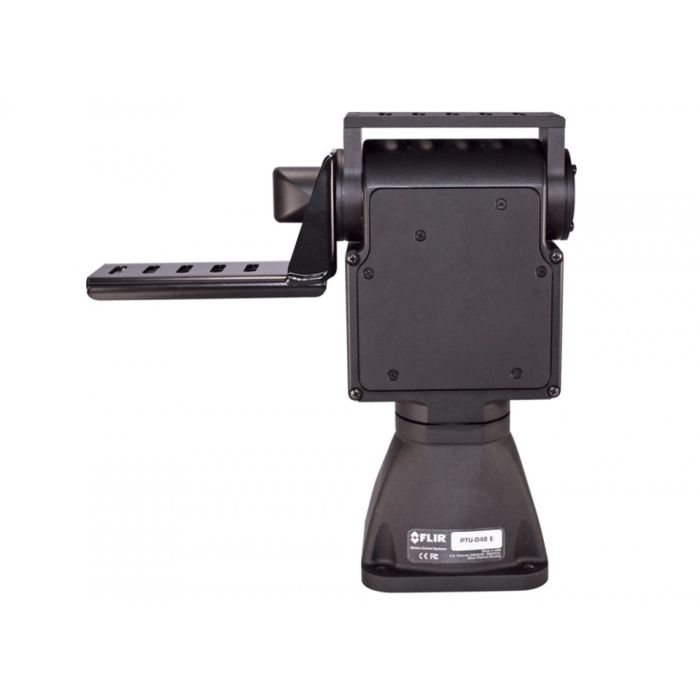

The PTU-D48E is the next-generation configuration of the popular PTU-D48 model. It is designed for high-speed, accurate positioning of camera, laser, antenna or other payloads to 15 lbs. The E-Series electronics include integrated Ethernet, improved motion performance, programmable ranges of motion, and more. The PTU-D48E features internal wiring with slip-ring for 360-continuous pan. Bracketing options include top, side, and side+top. A single mil-style connector carries all pan-tilt and payload signals, providing simple and reliable installation and operation.

Download Product Documentation

Estimated 12-20 week delivery if backordered

For Sale

SKU
D48E
Customize D48E

* Required Fields

Your Customization
D48E
D48E

For Sale

$5,913.66

Summary

    The PTU-D48E Series miniature, computer-controlled pan-tilt is compact and light weight, extremely rugged, fast, and precise. It features the E-Series electronics providing integrated Ethernet, improved command rates, programmable ranges of motion.

    A single mil-style connector provides power and pan-tilt control, as well as pass through of payload signals via the integrated slip-ring.

    The built-in command set offers both ASCII and binary formats. This command set supports real-time control at very high command rates with very low and predictable latencies. The rich command set provides fine-grained control of position (absolute and relative), velocity, acceleration and other unit functions. The optional Geo-Pointing Module also provides an Ethernet/IP interface for control of the pan-tilt units.

    Features

    • Payloads to 15 lbs
    • Small form-factor
    • Under 12 lbs.
    • Tilt position resolution of 0.003°
    • Pan speeds up to 100° / Sec.
    • Wide range DC voltage input
    • Built-in Ethernet
    • Programmable ranges of motion



    Specifications

    Max Payload Weight (nominal) 15 lbs
    Pan Position Resolution (°)* 0.006° (with microstep)
    Tilt Position Resolution (°)* 0.003° (with microstep)
    Min Pan Speed 0.006° / Sec.
    Max Pan Speed 100° / Sec.
    Min Tilt Speed 0.003 °/ Sec.
    Max Tilt Speed 50° / Sec.
    Pan Range Nx360-continous
    Tilt Range -30°/+90°
    Weight 11 lbs
    Height 10.46" (with top bracket)
    Operating Voltage 12-30VDC
    Environmental IP67
    Operating Temperature -30°C to +70°C



    * Pan-tilts support 1/2, 1/4, and 1/8 microstep modes as well as autostep mode, all software configurable. Quoted resolutions are for 1/8 step mode. Firmware default is 1/2 step. Torque and speeds are somewhat reduced at 1/4 and 1/8 step modes.

    More Information
    Brand Teledyne
    PTU Weight 11 lbs
    PTU Max Tilt Speed 50° / Sec.
    PTU Max Payload 15
