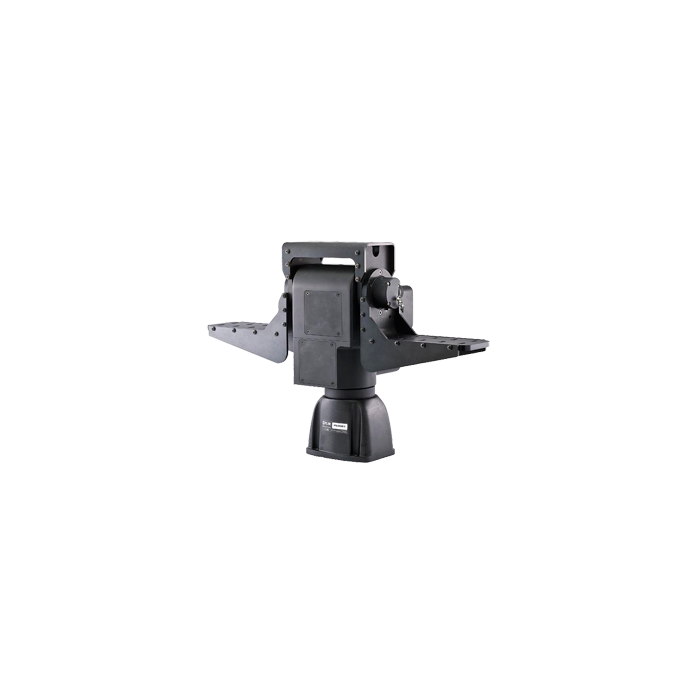

Engineered for precision and reliability, the FLIR PTU-D300e is a high-performance, computer-controlled pan-tilt unit optimized for heavy payloads. With advanced motion control, programmable ranges, and an integrated Ethernet interface, it delivers rapid, accurate positioning for cameras, sensors, and antennas in both fixed and mobile applications.
D48E
Previous
PTU-D300 Heavy-Duty Pan-Tilt Unit for Precision Payload Control
The FLIR PTU-D300 is a rugged, computer-controlled pan-tilt positioning system built for extreme environments and precise control of heavy payloads up to 70 lbs. Ideal for mounting thermal imaging cameras, laser rangefinders, antennas, and other high-value equipment, this off-the-shelf solution supports both fixed and mobile surveillance platforms. An integrated slip-ring allows for continuous 360° pan rotation, making it the perfect fit for mission-critical applications requiring nonstop operation.
Enhanced E-Series Pan Tilt Platforms with Ethernet & Geo-Pointing
FLIR's E-Series models combine advanced motion control with an integrated Ethernet/web interface for remote configuration and real-time command execution. These units feature programmable motion ranges, exceptional command fidelity, and robust performance. A fully integrated controller uses a single military-style connector for power, pan-tilt control, and optional payload signal management.
Durable flex-circuitry inside the tilt stage absorbs motion and extends the unit’s lifespan through high-duty cycles.
Advanced Control Protocols & Geo-Locational Targeting
With support for both ASCII and binary command sets, the PTU-D300 delivers real-time, low-latency control at high command rates. Operators can fine-tune absolute and relative positioning, velocity, and acceleration with precision. Built-in geo-pointing functionality enables targeting via latitude, longitude, and altitude coordinates—standard across all E-Series models.
This Configuration Guide lists the configuration options and accessories for the PTU‐D300 E Series pan‐tilt units (PTU‐D300E) manufactured by FLIR Motion Control Systems, Inc. Additional information and instructions for the PTU‐D300E are available in the following documents:
- PTU‐D300 E Series Datasheet
- PTU‐D300 E Series User Manual
- Pan‐Tilt Unit (E Series) Command Reference Manual

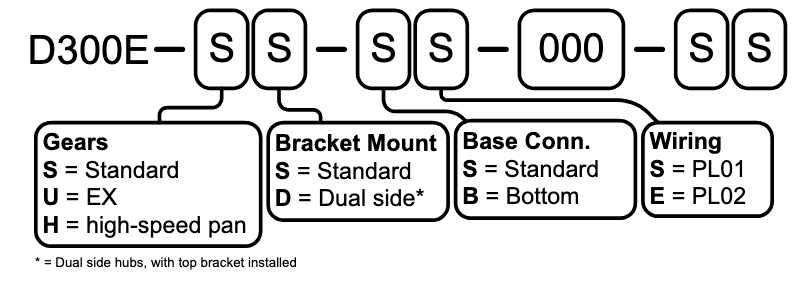

Model Numbers
Available Options
The following configuration and options are available for the PTU‐D300E:
- EX Gears: The PTU‐D300E with EX gears provides additional torque with slower axis speeds for heavier loads.
- HS Gears: The PTU‐D300E with HS gears provides higher pan‐axis speeds and lighter load capacity.
- Bracket Mount: Payloads can be mounted on the top and/or side. A number of bracket options are available to suit each application.
- Bottom Base Connector: The PTU‐D300E can be configured with the base connector located on the bottom of the unit, which is useful for pole‐mounted applications.
- Slip Ring: The PTU‐D300E is available with or without a slip ring for continuous 360° panning.
- Wiring: Different payload pass‐through wiring options are available for passing signals through the PTU to the payload.
- Range of Motion: If needed, you may request special limits.
- Pan-Tilt Controls: The PTU‐D300E can be controlled using an ASCII command set, Ethernet/web connection, Pelco D protocol, external joystick, or binary command set.
- Accessories: Available accessories include cables, converters, power supplies, and starter kits.
EX Gears
The PTU‐D300E with EX gears increases the maximum payload rating from 35 lbs. to 60 lbs. (top mount) or from 60 lbs. to 90 lbs. (side mount) by providing additional torque at reduced axis speeds.
Part Number:
- D300E‐S_‐__‐000‐SS (standard gears) or
- D300E‐U_‐__‐000‐SS (D300E‐EX gears)
HS Gears
The PTU‐D300E with HS gears increases the maximum pan‐axis speed to 90° per second while reducing the maximum payload from 35lbs. to 25lbs. (top mount) or from 60lbs. to 40lbs. (side mount).
Part Number:
- D300E‐S_‐__‐000‐SS (standard gears) or
- D300E‐H_‐__‐000‐SS (high‐speed gears)

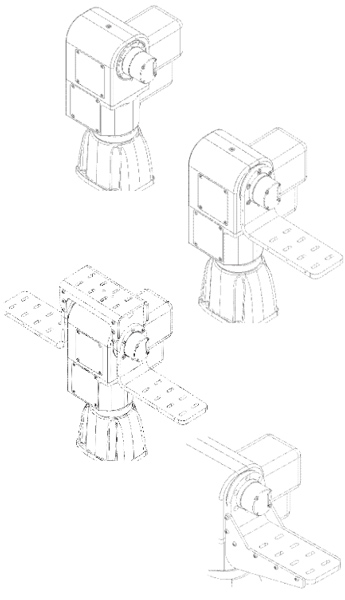

Bracket Mount
The PTU‐D300E accepts top‐ or side‐mounted payloads. Side mounting allows heavier payloads because it reduces tilt‐axis torque. You can mount the PTU‐D300E in any orientation; however, you must consider gravity and torque effects based on the PTU orientation and payload orientation/balance.
Single Side Mount
The PTU‐D300E comes with a single side hub.
Part Number:
- D300E‐_S‐__‐000‐SS (PTU)
- D300‐BKT‐LSTD (side bracket)
- D300‐BKT‐HDS (HD side bracket)
Dual Side Mounts
Alternatively, you may order the PTU‐D300E with one or two optional side‐mount
bracket(s), with a permanently mounted top bracket.
Part Number:
D300E‐_D-__‐000‐SS (PTU) and D300‐BKT‐LSTD (bracket)
To order a PTU-D300E with one side-mount bracket: Order the PTU with two side hubs (D300E‐_D‐__‐000‐__) plus one bracket (D300‐BKT‐LSTD).
To order a PTU-D300E with two side-mount brackets: Order the PTU with two side hubs (D300E‐_D‐__‐000‐__) plus two brackets (D300‐BKT‐LSTD).
Heavy payloads (above 20 lbs.):
Order heavy‐duty brackets for payloads over 20 lbs.
Part Number: D300‐BKT‐HDS (side mount)
Bottom Base Connector
The PTU‐D300E may be ordered with the base connector mounted either on the side or bottom of the unit.
Part Number:
- D300E‐__‐S_‐000‐SS (std.) or
- D300E‐__‐B_‐000‐SS (bottom connector)
Slip Ring
The PTU‐D300E includes a slip ring that allows continuous 360° pan rotation.
Payload Wiring

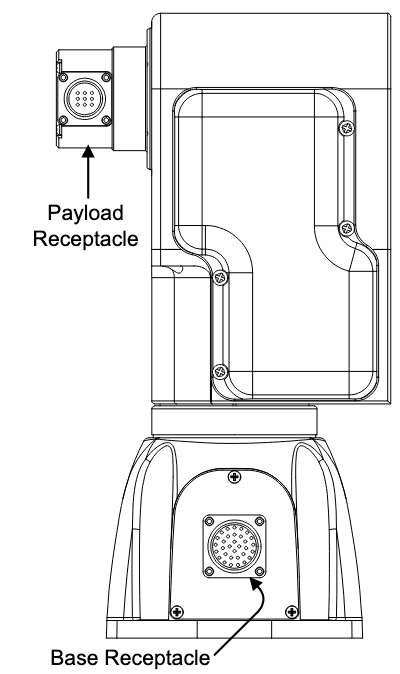

PTU‐D300E units are equipped with internal pass‐through wiring, which provides a 19‐pin MIL‐C‐26402 female receptacle at the top of the PTU near the payload location to connect video, power, and other signals. (The mating connector is provided to facilitate cable construction if needed.) These signals then pass through the PTU, into the connector at the base of the unit, and the cable harness (if purchased). This option allows you to reduce the amount of external cables and eliminate potential damage to external cables.
- The payload receptacle contains lines for Video 1, Video 2, payload power, and general pass‐through lines.
- The base receptacle contains lines for Video 1, Video 2, payload power, general pass‐through lines, PTU control (RS‐232, RS‐485), and PTU power.
PL01 Wiring
PL01 allows you to route signals to the payload as shown in the table via 10 dedicated conductors. A mating connector for cable construction is included.
Part Number: D300E‐__‐_S‐000‐__
PL02 Wiring
PL02 allows you to route signals to the payload as shown in the table via 13 dedicated conductors. Mating connector included.
Part Number: D300E‐__‐_E‐000‐_
| Pass Through Connectors | PL01 | PL02 |
|---|---|---|
| Power | 3 | 3 |
| Video | 4 | 4 |
| General | 3 | 6 |
| Total | 10 | 13 |
| Signals At Payload | PL01 | PL02 |
| TTL Outputs | 1 | 3 |
| PTU Host Control | 3 | 3 |
| CHA/CHB Serial | 8 | 8 |
| Base Connector | PL01 | PL02 |
| RS-232 Host Control | YES | NO |
| Base Connector | YES | YES |
Range of Motion
The PTU‐D300E has the following standard factory pan and tilt axis limits. Factory limits define the range of motion allowed for an axis when limits are enabled, and that axis cannot travel beyond those limits. You may also order a PTU‐D300E with an optional slip ring that allows continuous 360° pan‐axis movement.
Note: You may special order a PTU‐D300E with custom hard stops installed and/or with custom bracket positioning, factory ranges of motion, etc. Please contact FLIR Motion Control Systems, Inc. for assistance
Pan Range Options
Part Number: D300E‐__‐__‐000‐S_ (std.)
Tilt Range Options
Part Number: D300E‐__‐__‐000‐SS (std) TILT‐RANGE‐180 (+/‐ 90° tilt)
The part number on your PTU‐D300E may vary as shown here to reflect any special‐ordered custom limits, stops, etc.
Note: A tilt range of +/‐90° is available for PTUs with no top bracket installed. Be sure to note this requirement when placing your order to ensure that factory limits are properly configured. This option is not available for PTUs with the standard top bracket installed.
Pan‐Tilt Controls
E Series PTUs support serial, Ethernet/web, binary, and joystick control interfaces that provide a wide range of system control architectures. The following options are available:
ASCII Command Set

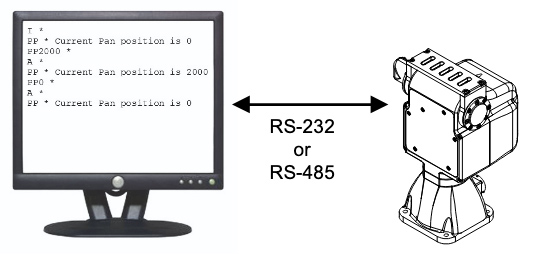

Your PTU can be controlled via the standard built‐in serial port (RS‐232 or RS‐485) using
simple ASCII commands. (See the E Series Command Reference Manual.) This can be done using a terminal program or a custom application.

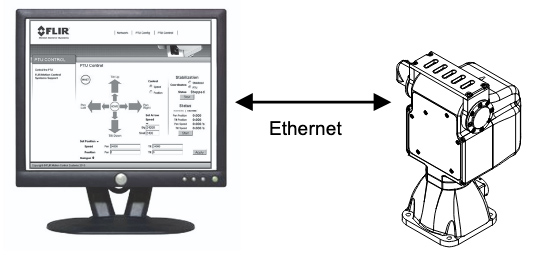

Ethernet/Web Interface
Your PTU can be controlled via the standard built‐in Ethernet port and web interface. The intuitive interface makes configuration and direct control easy using a mouse and direct text entry.
Pelco D Protocol
E Series PTUs with firmware version 3.1.1 and newer support the standard pan/tilt portions of the proprietary Pelco D protocol. Both the web interface and ASCII commands support various Pelco configuration options.

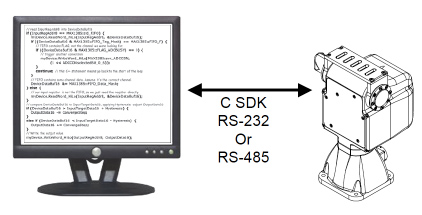

Software Development Kit (C SDK)

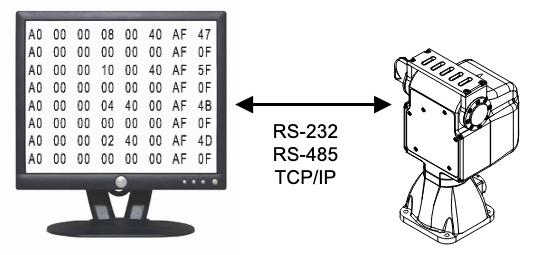

Your PTU can also accept binary commands using the optional C Language Software Development Kit (PTU‐SDK), which is provided as ANSI C Source Code that you can compile into your application on most computing platforms (CPU/OS). The binary command format is recommended for high‐performance applications such as tracking.
Part Number: PTU‐SDK

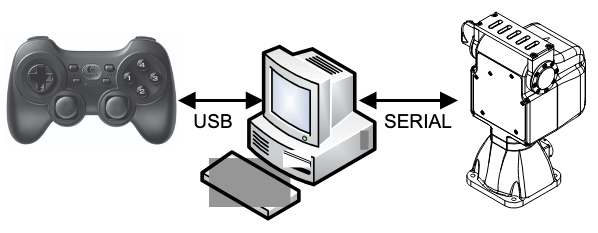

Gamepad Controller
A USB gamepad controller is available to control a single PTU and up to two VISCA‐compatible cameras that are connected to a host computer via a serial connection. The PTU Joystick Control utility is included with E Series PTUs.
Part Number: PT‐PSC
Note: Cameras should be connected to the host PC using a dedicated serial connection for each camera.
Accessories
The following accessories may be ordered for your E Series PTU. These accessories simplify system prototyping and fielding.
Breakout Cables

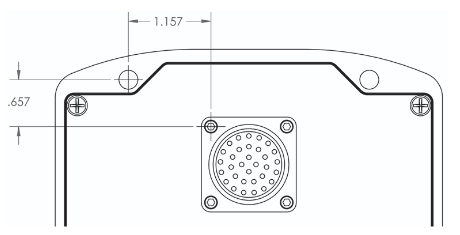

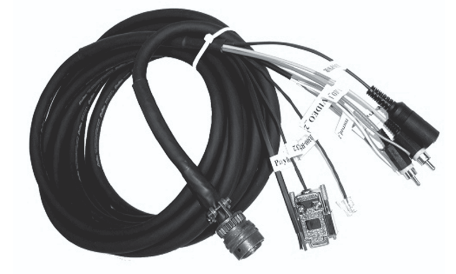

The breakout cable connects to the 32‐pin base connector (MIL‐C‐26482) on the PTU and terminates to standard connectors for power, serial communication, Ethernet, and payload signals. The terminating connectors are:
- Power (DIN)
- 2x video (composite)
- RS‐232 (DB‐9, female)
- RS‐485 (RJ11)
- Ethernet (RJ45)
- Payload pass‐through conductors.
Available in 10', 25’, 50’ and 100’ lengths.
Part Number:
- PTU‐CAB‐10BO (10’)
- PTU‐CAB‐25BO (25’)
- PTU‐CAB‐50BO (50’)
- PTU‐CAB‐100BO (100’)

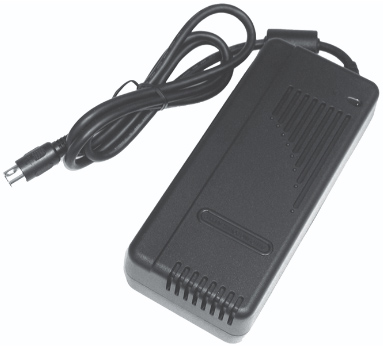

Power Supply
PTU power supply unit. 30VDC output, 110/220VAC input.
Dimensions: 3.44”W x2.01”Hx7.61”L.
Part Number:
PTU‐APS‐30V‐NA (North America) or
PTU‐APS‐30V‐EC (Europe)
Note: Input voltages under 30V can reduce the maximum speed of the unit by an amount that is proportional to the voltage difference

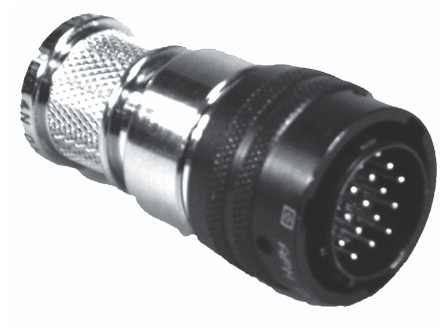

Mating Connector
Mating connector for the 32‐pin base (MIL‐C‐26482) and 19‐pin payload (MIL‐C‐26402) PTU connectors. Use this to make custom PTU and/or payload cables.
Part Number:
- PTU‐CAB1‐19PMILC (19‐pin payload)
- PTU‐CAB3‐32PMILC (32‐pin base)
Note: Each E Series PTU with a wiring option (PL01, PL02, or PL17) includes one (1) 19‐pin mating connector (PTU‐CAB1‐19PMILC).
| Pan Resolution | 0.0064° |
|---|---|
| Tilt Resolution | 0.0064° |
| Top Mounting Brackets (TMB) | TMB not incl. w/ D300E-SS TMB incl. w/ D300E-SD |
| Top Payload Capacity | D300E: 35 lbs / 15.9 kg D300E-HS: 25 lbs / 11.3 kg D300E-EX: 60 lbs / 27.2 kg |
| Side Mounting Brackets (SMB) | D300E-SS: Only 1 SMB D300E-SD: 1 or 2 SMBs |
| Side Payload Capacity | D300E: 70 lbs / 31.8 kg D300E-HS: 40 lbs / 18.1 kg D300E-EX:90 lbs / 40.8 kg |
| Max Pan Speed | D300E: 50°/sec D300E-HS: 90°/sec D300E-EX: 22°/sec |
| Max Tilt Speed | D300E: 50°/sec D300E-HS: 90°/sec D300E-EX: 22°/sec |
| Max Payload | The combined weight of top and side payloads (if using both) cannot exceed the side payload capacity rating |
| Weight | 26 lbs / 11.8 kg |
