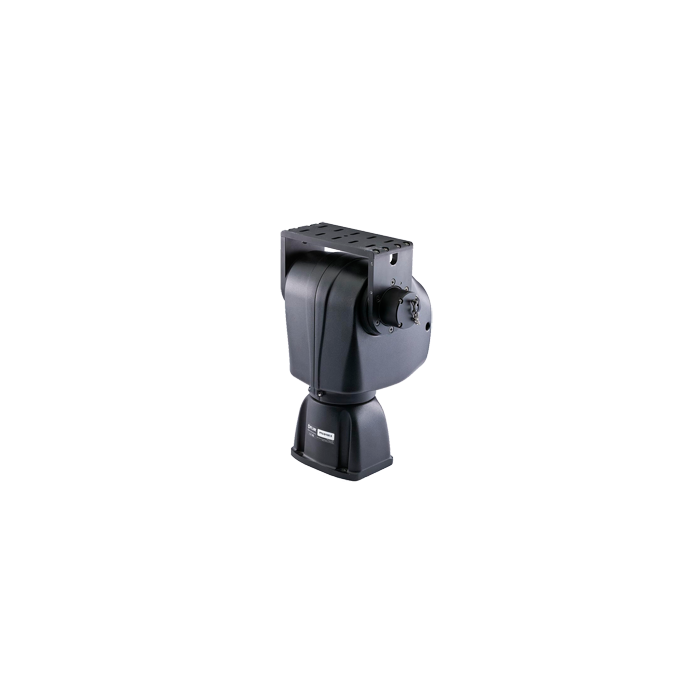

D100E

From $8,185.00

To $18,282.00

The PTU-D100 E-Series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. It has been designed to be simple to integrate. The PTU-D100 E-Series is an open platform that provides the flexibility needed while minimizing your development and integration effort. It has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments.

For Sale

SKU
D100E
Customize D100E

* Required Fields

Your Customization
D100E
D100E

For Sale

$8,185.00

Summary

    Tough, Flexible, Programmable Pan/Tilt

    High Performance with Hefty Payloads

    With payload capacity up to 25 pounds and precise positioning, D100 pan/tilts have a wide range of pan speeds for smooth, precise 360° control.

    Rugged Precision Pointing

    Precise, real-time control of position, speed, and acceleration — plus a rigid worm gear design — provides steady positioning in windy environments and vehicle-mounted applications.

    Powerful Performance

    With integrated Ethernet and Web interfaces, increased command rates, reduced jitter, and advanced microstep control, D100 pan/tilts provide advanced performance at affordable prices.



    Specifications

    Overview

    Max Pan Speed
    120°/sec
    Max Payload Weight [nominal]
    Side Mount: 25 lb Top Mount: 15 lb
    Max Tilt Speed
    120°/sec
    Min Pan Speed
    0.0075°/sec
    Min Tilt Speed
    0.0075°/sec
    Pan Range
    Programmable up to +/- 168° or 360° continuous
    Position Resolution
    0.0075°
    Tilt Range
    Programmable up to +30° to -90° from level (120° range) (up to +/-90° with side mount if specified at time of order)
