NVIS Scout 35

Be the first to review this product
US$11,900.00
In stock
SKU
0829

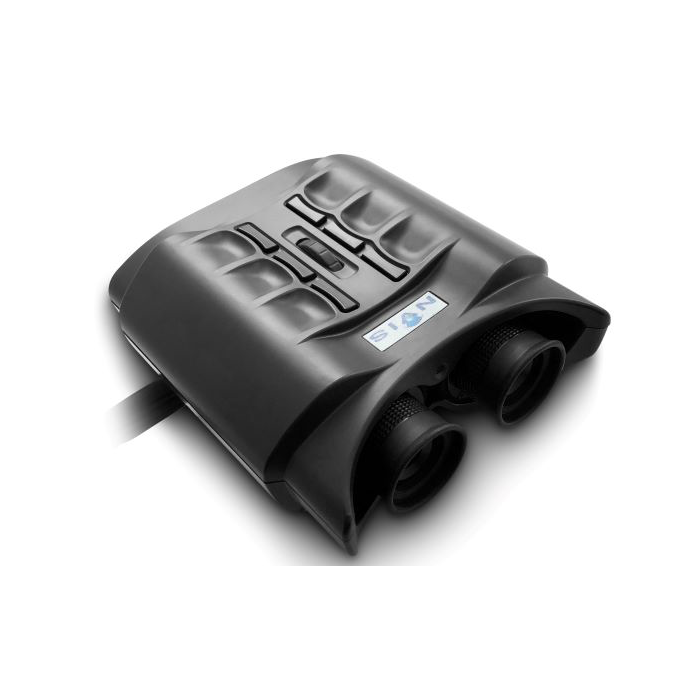

Scout 35 hand-held display system. Dual 1920x1080 displays with 35 degree circular field-of-view. Includes 6 programmable USB Joystick buttons, scroll wheel, integrated tripod attachment, and accommodates most motion trackers. Requires one or two of the following for monoscopic or stereoscopic viewing, respectively: HDMI, DisplayPort, or DVI.
Compare

The Scout 35 is a robust professional hand-held display designed for cost-sensitive, high-fidelity training and simulation. The Scout uses high-contrast OLED 1920x10280 microdisplays to provide superior visuals for all scenarios, including nighttime / low-light simulation.

The Scout has a user accessible door that allows users to install industry standard motion sensors. The Scout provides six programmable USB Joystick compatible buttons, plus a z-axis scroll wheel, offering developers and users a wide array of interactivity within their applications. The Scout was designed for applications with sensitive budgets requiring an easy-to-use, professional binocular display. Its versatile and durable design is ideal for wide range of military applications requiring simulated binocular and bi-ocular military devices, as well as emerging medical training solutions that need to simulate 3D surgical microscopes

Optical
FOV, Binocular (diagonal) 35º ±1.7º (Round)°
Overlap 100 %
Pupil Size 5 mm, Non-Real mm
Eye Relief 13mm mm
Geometric Distortion -5.8% (Barrel)
Brightness (MAX) 46 fL
Contrast (Min.) 10000:1
Image Defect Criteria Per 104921 Image Defect Criteria (Sony OLED Products). [CONTACT NVIS OR VISIT NVISINC.COM]
Spatial Resolution 1.94 arcmn/pxl
Microdisplay
Display Technology Organic Light-Emitting Diode (OLED)
Resolution 1920 x 1080
Color Depth 24-BIT (8 bits per R,G,B)
Video
Video Input Format Full HD 1080p 1920 x 1080 @ 60 Hz
Latency <1 ms
Controls
Interpupillary Distance (IPD) Range 54-74 mm
Power
Power Supply USB or USB Compatible
Power Source USB host or charger
Power Input +5V DC, 1 A
Physical
Size (envelope)

6.53 L x 6.06 W x 2.97 H in (Scout 35)

6.53 L x 6.62 W x 2.97 H in (Scout 35 (NB))
Mass 750 g
Cable Length 4.2 m

More Information

More Information
Vision binocular
Display Technology OLED
Video Inputs DVI
