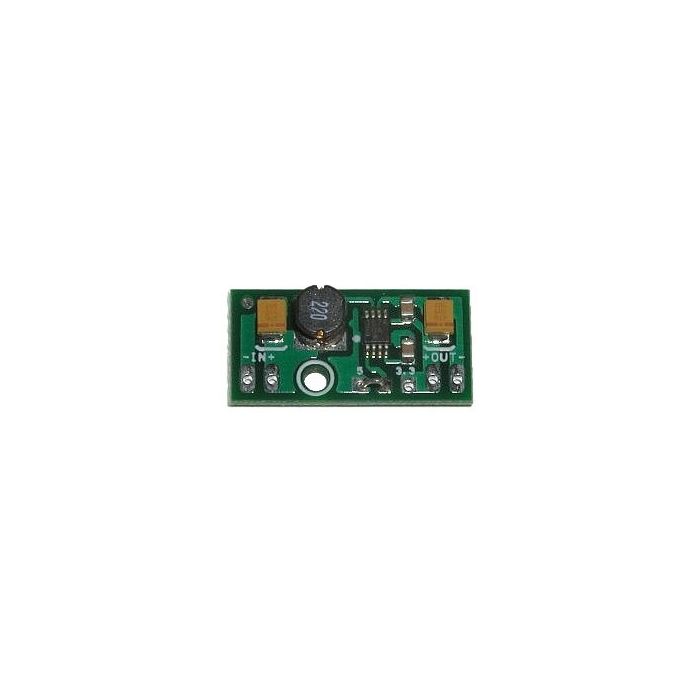

3.3V/5V DC/DC Step-Up Converter

The 3.3V/5V DC/DC Converter is a small switching step-up DC/DC converter circuit that provides a +5VDC output by default from input voltage as low as 0.7V. The DC/DC Converter can alternatively be configured for +3.3VDC output, and also features a 0.1" diameter mounting hole.

Ideal for "AA", "AAA" and CR123 batteries.

• Input : +0.7V to 5V DC (1.1V required for startup)
• Output: +5VDC @ 200mA (also configurable for +3.3V)
• Dimensions: 1.0" (L) x 0.5" (W) x 0.25" (H)
