LM842

$27.55
  • WiFi 802.11ac, abgn
  • Wave-2 compatible with MU-MIMO
  • Bluetooth® v5.0 Dual Mode (Backwards compatible from Bluetooth® v4.2)
  • WPA, WPA-PSK, WPA2, WPA2 -PSK and WEP (64bit & 128bit) encryption schemes
  • 2.4 GHz and 5GHz ISM Frequency bands
  • 2T2R 802.11n 2.4GHz WiFi 300Mbps data rate [Untested]
  • 2T2R 802.11ac 5GHz WiFi 867Mbps data rate [Untested]
  • 2T2R BT5.0 2.4GHz 1.3Mbps data rate [Tested]
  • WiFi/Bluetooth® coexistence enabled
  • USB 2.0 with multi interface controller
  • 32-37mm x 17.1mm x 9.4mm
  • Bluetooth® SIG, FCC & CE certifications prior to release.
  • RoHS, REACH and WEEE
For Sale
SKU
0846

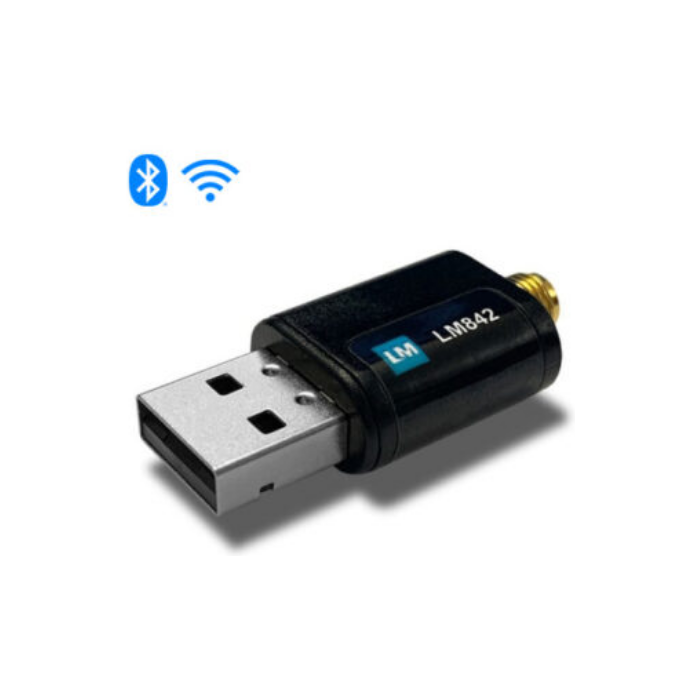

The LM842 USB Adapter (Dongle) complies with Bluetooth® 5.0 (Dual Mode) and IEEE 802.11ac WiFi Standards of operation. Using a fully integrated single-chip that supports 2-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output).

Two Optional form factors: 2 x Onboard Metal Frame Antennas with SMA Connector, or 1 x Metal Frame and 1 x SMA Connector

Wifi: IEEE 802.11ac
Bluetooth: Compliant to Bluetooth® 5.02 and backward compatible with Bluetooth v2.1+EDR / v3.0 / v3.0+HS / v4.0, 4.1, & 4.2 with both BR/EDR.

Classic and LE can operate simultaneously.

The Realtek IC, RTL8822CU using a USB main interface.

LM842 offers high throughput for both WiFi and Bluetooth® connections, connected via a (HCI) USB 2.0 TYPE A interface.

More Information
Manufacturer LM Technologies
Backorder Lead Time 26 Weeks
Interface USB
Specification 5.0
Bluetooth stack location host software
