LM060

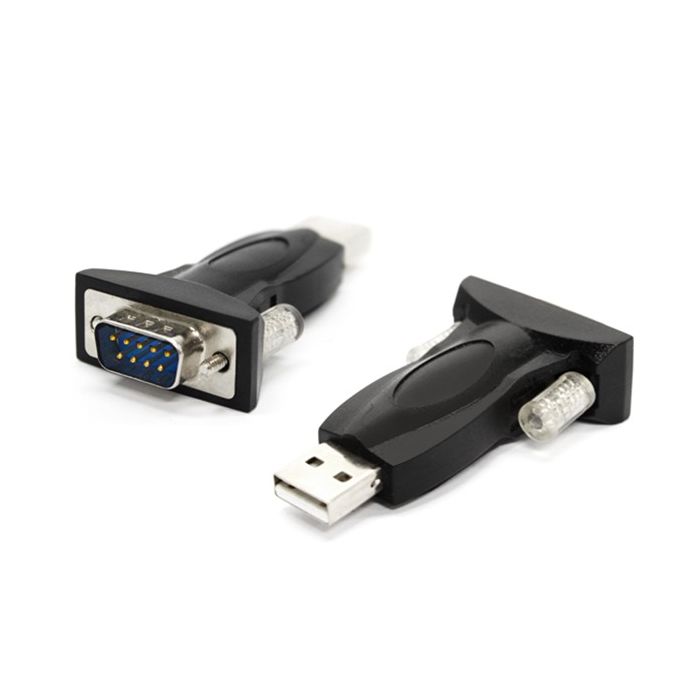

LM060 RS232 to USB Converter FTDI IC
LM060 RS232 to USB Converter FTDI IC is a smart and convenient accessory for connecting RS-232 serial devices to your USB-equipped host computer.
It provides a bridge connection with a standard DB9 male serial port connector in one end and a standard Type-A USB plug connector on the other end. The USB powers the converter to run the FTDI IC conversion.
This USB to Serial adapter is ideal for connecting modems LM Bluetooth Serial Adapters to a PC or can be used with devices such as digital cameras, card readers and other serial devices to your computer. It provides serial connections up to 1Mbps of data transfer rate. And since USB does not require any IRQ resource, more devices can be attached without the hassles of device resource conflicts.
LM060 RS232 to USB Converter FTDI IC Specifications
• UART interface support for 7 or 8 data bits
• 1 or 2 stop bits and odd / even / mark / space / no parity
• Supported on Windows OS (32 bit and 64 bit) Linux and MAC OS
• Integrated with a new FTDI Chipset - FT232RL
• In-built support for event characters and line break condition
• Fully assisted hardware or X-On / X-Off software handshaking
• FIFO receive and transmit buffers for high data throughput
• RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
• Operating temperature of -20°C to +80°C
Drivers are available for the following platforms;
- Windows 8.1
- Windows 8.1 x64
- Windows 8
- Windows 8 x64
- Windows Server 2008 R2
- Windows 7
- Windows 7 x64
- Windows Server 2008
- Windows Server 2008 x64
- Windows Vista
- Windows Vista x64
- Windows Server 2003
- Windows Server 2003 x64
- Windows XP
- Windows XP x64
- Windows ME
- Windows 98
- Linux
- Mac OS X
- Mac OS 9
- Mac OS 8
- Windows CE.NET (Version 4.2 and greater)
- Android
Brand | LM Technologies |
---|---|
Bus Type | USB |
Low Profile | No |
Opto Isolated | No |
RS-422/485 Ports | 0 |
RS-232 Ports | 1 |
LPT Ports | 0 |
