O5 ZIF

Be the first to review this product

Availability: In stock

CAD $600.00
OR

Quick Overview

High Performance OLED driver with ZIF FFC Connector

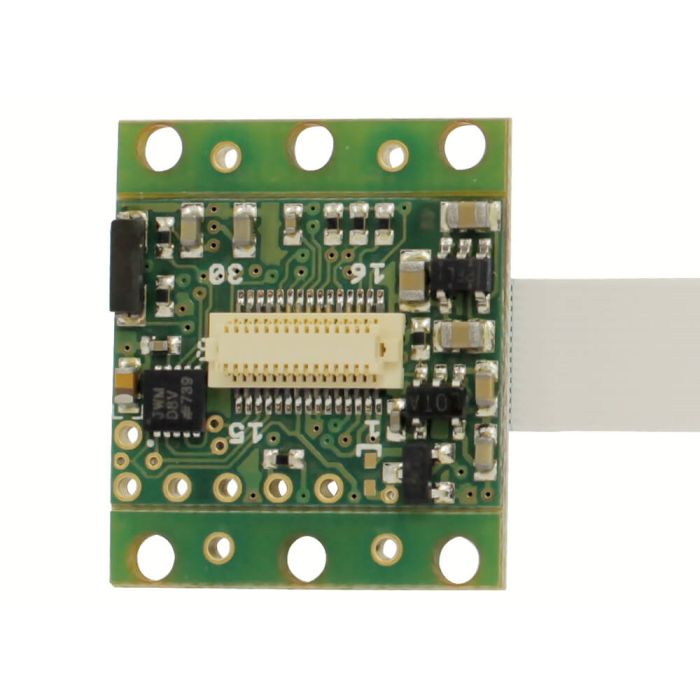

O5 ZIF with FFC to Wire Board

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

The O5 OLED driver board for the eMagin SVGA+ and SVGA-3D OLEDs is designed for applications where individual gain, offset and luminance controls are necessary.

Luminance control for the OLED is necessary for some applications that require:
  • a wider luminance range than is available from the standard OLED drive circuitry
  • temperature compensation to accommodate for picture quality variations that occur in the OLED over a wide range of temperatures
The O5 possesses all of these features:
  • receives video and power inputs
  • performs the DC/DC power conversion
  • video signal auto-detection
  • display initialization
  • user-control for power and highbrightness (luminance)
  • connects to the OLED
  • receives video and power from user supplied outputs
  • implements the high brightness settings
  • Simple Serial Interface to accommodate remote configuration
  • Standard 14 pin 0.5mm pitch FFC cable interface for easy hookup
  • Single units come with FFC cable and FFC-to-wire breakout board (shown in picture) at no extra charge.

Contact us for quantity pricing or custom firmware and layout requirements

You may also be interested in the following product(s)

O5

O5

CAD $660.00


Additional Information

Manufacturer Tek Gear
Display SVGA+, SVGA-3D
Form Factor OLED-size
Luminance Adjustable
Cable Interface FFC
Command Interface Yes
Display Manufacturer eMagin

Product Attachments

View FileO5 Datasheet    Size: (194.92 KB)
View FileO5 Solid Model (iges)    Size: (37.4 KB)
View FileO5 Control Interface 0.3.4    Size: (211.77 KB)
View FileO5 Packet Generator 0.3.4    Size: (93 KB)
View FileO5 ZIF Wire to FFC Board Pinout    Size: (66.72 KB)
