O1 ver.2

Be the first to review this product

Availability: In stock

CAD $550.00
OR

Quick Overview

OLED driver board for SVGA OLED

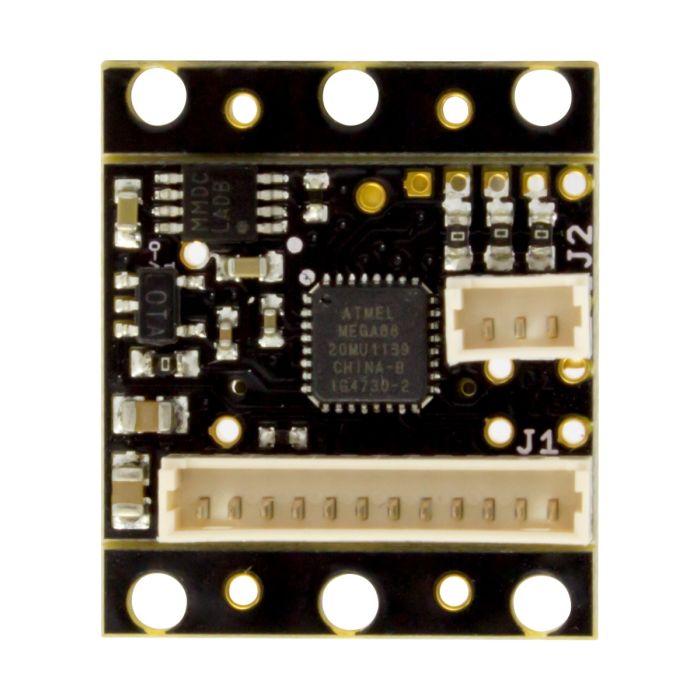

O1 front View

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

The O1 OLED driver board for the eMagin SVGA+ OLED is designed for monocular applications and also binocular and stereoscopic applications where each display engine must move independently or receive a different video signal.

A 12 pin connector provides input of VESA VGA/SVGA video, NTSC/PAL monochrome composite video and 5V DC power.  The O1 takes care of the rest including DC/DC power conversion, display initialization, and automatic video resolution and frequency detection (multi-sync). Simply attach the OLED, your input cable and an optic, and the display is ready to use.  Signal gain and offset control is also available through a 3-pin header.

The new O1 version 2b retains the small size of the original O1, but also adds more features to make it even more configurable.

1. Detachable mounting tabs
For sturdy connection to your enclosure, they are also detachable so that it can return to the same outer dimensions as the OLED display, therefore keeping the entire display engine as small as the display itself.

2. NTSC/PAL select
For different composite video standards

3. Horizontal and Vertical scan direction select
For easy setup with mirrored and rotated optical systems

4. Display select
Achieve the best image results by selecting which eMagin display type is attached: SVGA+ or SVGA-3D




Small size and ease of use makes the O1 ideal for both initial evaluation and production systems for OEM customers.

Dimensions:
With mounting tabs:        0.78" x 0.60"
Without mounting tabs:   0.78" x 0.90"

OLED is sold separately
Includes application and technical support

Please contact us for quantity pricing or if you have a custom configuration or layout requirement.

You may also be interested in the following product(s)

O5 ZIF

O5 ZIF

CAD $600.00
O4

O4

CAD $600.00
O5

O5

CAD $660.00


Additional Information

Manufacturer Tek Gear
Display SVGA+, SVGA-3D
Form Factor OLED-size
Luminance Fixed
Cable Interface Discrete Wires
Command Interface No
Display Manufacturer eMagin

Product Attachments

View FileO1 v2b Datasheet    Size: (309.15 KB)
View FileO1 v2B Dimensions    Size: (44.47 KB)
View FileO1 v2b Solid Model (iges)    Size: (52.34 KB)
